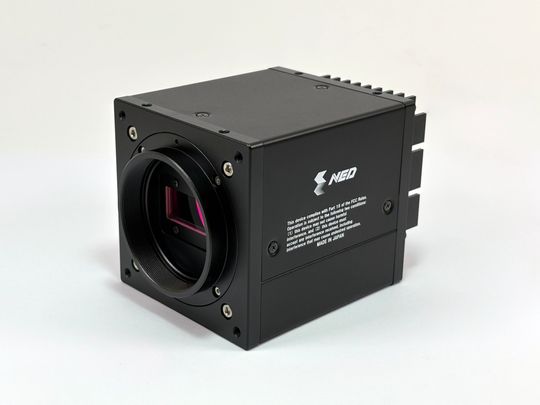

Powered by our innovative prism block technology, we have partnered with reputable companies to design fully functional cameras featuring GigE Vision, CoaXPress, or Camera Link interfaces, catering to your most demanding applications.
The flexible design of these off-the-shelf cameras ensures an easier solution for your application, providing you with full control over your bandwidth.
- Wave length Range
380nm～1780nm（R・G・B・NIR・SWIR） - 3CMOS or 4CMOS Sensor
- 7.0 x 7.0 um @ 4k
- 9.3um x 9.3um @ 3k
- 14.0um x 14.0um @ 2k
- 12.5um x 12.5um @SWIR-2k
- Maximum Line Rate
- 35kHz/28.6usec @ 4K
- 46KHz/21.8usec @ 3K
- 46KHz/14.3usec @ 2K
- 40KHz/25usec @ SWIR-2K
- External dimensions : 80(H) × 80(W) × 80(D) mm
Note in 2025, Engineering samples equipped with Camera Link.
